YSNE1V3MTXXXEPNNX
- Interface: E1.S
- Capacity: 960GB-7.68TB
- NAND: 3D TLC
- Read: Up to 3500 MB/s
- Write: Up to 3000 MB/s
- Operating Temperature: 0℃～70℃ Enterprise-grade
- Additional Features:
- Hardware Power Loss Protection
- 4K LDPC ECC
- NCQWear-leveling
Technology
-

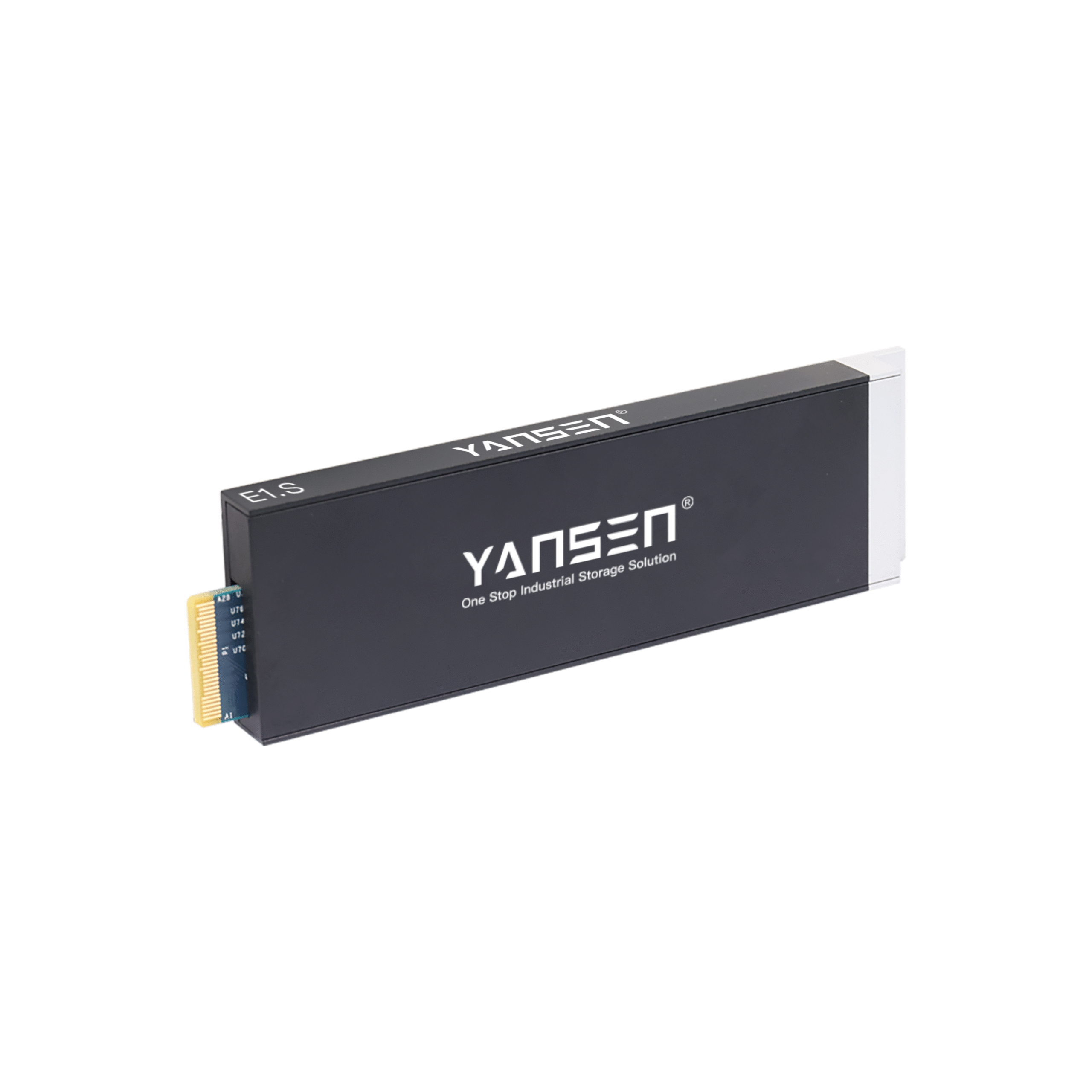

Introducing the YANSEN YSNE1V3MTXXXEPNNX E1.S SSD, a high-quality storage solution designed for reliable and efficient performance in enterprise environments. Featuring an E1.S interface and advanced 3D TLC NAND technology, this SSD offers a capacity range of 960GB to 7.68TB, ensuring ample storage for a variety of applications. Delivering fast read and write speeds of up to 3500 MB/s and 3000 MB/s, respectively, the YANSEN E1.S SSD provides the speed necessary for demanding data access and transfer requirements. It is built to operate in an enterprise-grade temperatures ranging from 0℃ to 70℃.
Order Information
| Model | Flash type | Capacity | Sequential read and write | |
| read | write | |||
| YSNE1V3MT960EPNNN | 3D TLC | 960GB | 3200MB/s | 1800MB/s |
| YSNE1V3MT1T9EPNNN | 3D TLC | 1.92TB | 3200MB/s | 3000MB/s |
| YSNE1V3MT3T8EPNNN | 3D TLC | 3.84TB | 3500MB/s | 3000MB/s |
| YSNE1V3MT7T6EPNNN | 3D TLC | 7.68TB | 3500MB/s | 3000MB/s |
| Model | YSNE1V3MTXXXEPNNX | ||||
| Dimensions | L118.75mm*W33.75mm*H9.5mm Error±0.55mm | ||||
| Interface | E1.S | ||||
| Protocol | PCle Gen 4×4 Lane, NVMe 1.4 | ||||
| Supported Systems | Windows 7, Windows 8, Windows 10, Windows Server 2012 R2, RHEL, CentOS, Ubuntu, Linux | ||||
| Capacity | 960GB | 1.92TB | 3.84TB | 7.68TB | |
| NAND Flash | 3D TLC | 3D TLC | 3D TLC | 3D TLC | |
| Sequential Read(MB/s) | 3200 | 3200 | 3500 | 3500 | |
| Sequential Write (MB/s) | 1800 | 3000 | 3000 | 3000 | |
| TBW | 1000TB | 2000TB | 4000TB | 8000TB | |
| 4K Random read(IOPS) | 240K | 400K | 400K | 400K | |
| 4K Random write(IOPS) | 30K | 50K | 50K | 50K | |
| DWPD | 0.6 DWPD @5 Years | ||||
| Input voltage | DC 12V+/-10% | ||||
| Power consumption ldle | <1W | ||||
| Power consumption Active | <12W | ||||
| Data retention | 10 years below 25 degree | ||||
| MTBF | 2 million hours | ||||
| ECC | 4K LDPC ECC | ||||
| Features | Power management/TRIM/S.M.A.R.T./NCQWear-leveling | ||||
| Operating Temp. | 0℃~70℃ Enterprise-grade | ||||
| Storage Temp. | -40℃~85℃ | ||||
| Humidity | 5-95% | ||||
- Specifications Download
