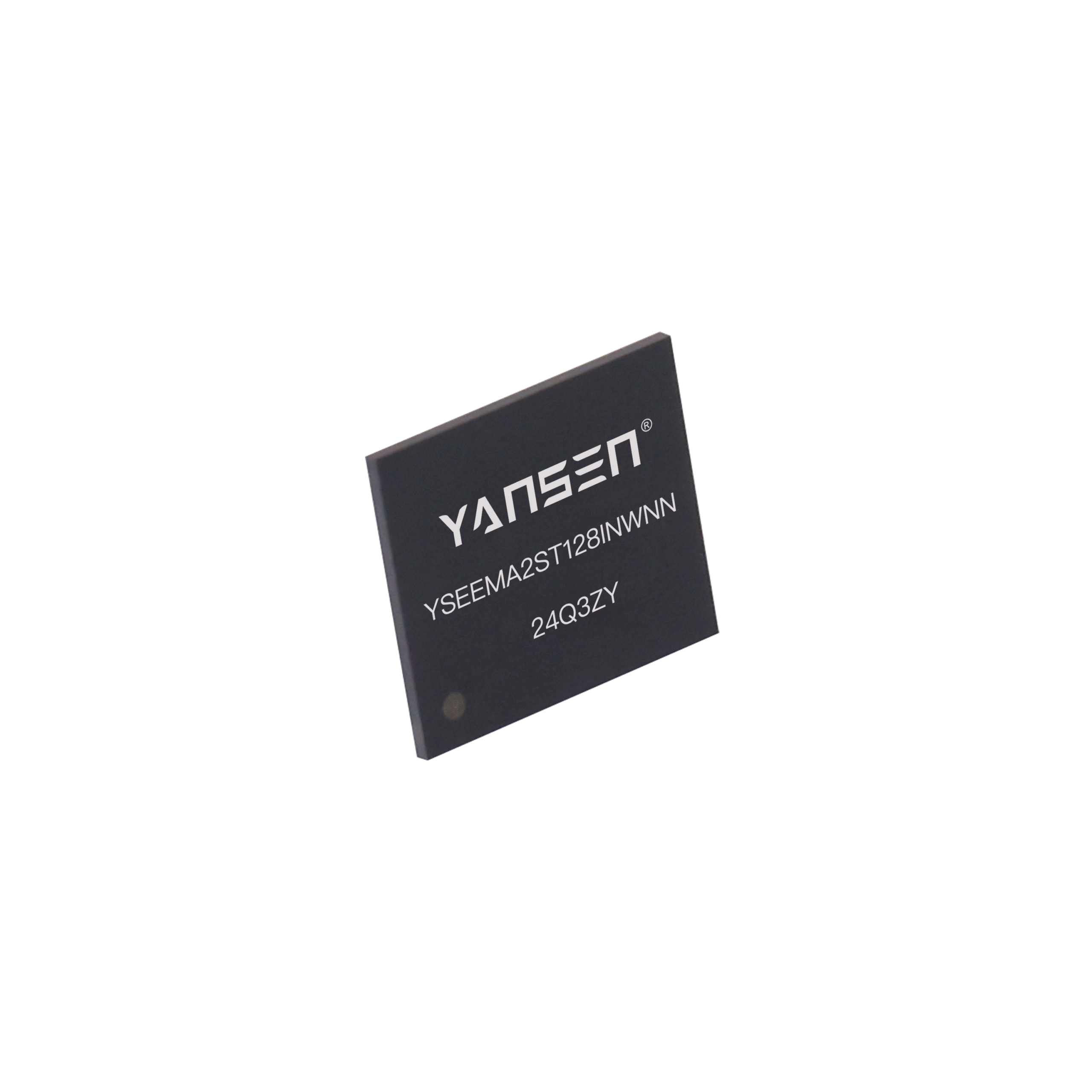

YSEEMAXXXXXXXXXXX
- Interface: eMMC 5.1
- Capacity: 4-128GB
- NAND: 3D MLC/TLC
- Read: Up to 295 MB/s
- Write: Up to 197 MB/s
- Operating Temperature: -40℃~85℃
- Additional Features:
- Power Loss Protection: Yes
Technology
-
Introducing the YANSEN YSEEMAXXXXXXXXXXX eMMC 5.1 storage solution, offering a versatile and reliable option for various applications. With a capacity range of 4GB to 128GB and utilizing advanced 3D MLC/TLC NAND, this storage device ensures efficient and dependable performance. Delivering read speeds of up to 295 MB/s and write speeds of up to 197 MB/s, the YANSEN eMMC 5.1 provides the speed necessary for fast data access and transfer. Designed to operate in industrial environments, it supports a wide range of operating temperature from -40℃ to 85℃, making it suitable for diverse applications requiring robust and stable performance.
Order Information
| Model | Flash type | Capacity | Sequential read and write | |
| read | write | |||
| YSEEMA1SM004INWNN | MLC | 4GB | 160MB/S | 52MB/S |
| YSEEMA1SM008INWNN | MLC | 8GB | 250MB/S | 115MB/S |
| YSEEMA2ST016INWNN | 3D TLC | 16GB | 290MB/S | 195MB/S |
| YSEEMA2ST032INWNN | 3D TLC | 32GB | 290MB/S | 195MB/S |
| YSEEMA2ST064INWNN | 3D TLC | 64GB | 295MB/S | 190MB/S |
| YSEEMA2ST128INWNN | 3D TLC | 128GB | 282MB/S | 197MB/S |
| Model | YSEEMAXXXXXXXXXXX | ||||||
| Dimensions | 11.5mm*13.0mm*1.0mm±0.1mm | ||||||
| Protocol | eMMC5.1 | ||||||
| Supported devices | Smart phones, Tablet, PDAs, Handheld electronics, Digital video cameras, Multimedia equipment, etc. |
||||||
| Capacity | 4GB | 8GB | 16GB | 32GB | 64GB | 128GB | |
| NAND Flash | MLC | MLC | TLC | TLC | TLC | TLC | |
| Sequential Read(MB/s) | 160 | 250 | 290 | 290 | 295 | 282 | |
| Sequential Write(MB/s) | 52 | 115 | 195 | 195 | 190 | 197 | |
| Random read(IOPS) | 4200 | 3900 | 8200 | 8200 | 7900 | 7560 | |
| Random write(IOPS) | 3200 | 4400 | 7100 | 7000 | 6800 | 5860 | |
| Power consumption Idle(uA) | 150 | 80 | 135 | 135 | 140 | 110 | |
| Power consumption Sleep(uA) | 120 | 70 | 130 | 130 | 135 | 80 | |
| HS400 Read VCC(mA) | 40 | 70 | 40 | 40 | 40 | 75 | |
| HS400 Read VCCQ(mA) | 170 | 200 | 120 | 120 | 125 | 125 | |
| HS400 Write VCC(mA) | 20 | 45 | 50 | 50 | 55 | 85 | |
| HS400 Write VCCQ(mA) | 100 | 125 | 65 | 65 | 65 | 70 | |
| Operating Voltage | VCC=3.3V,VCCQ=1.8V | ||||||
| Operating Temp. | -40℃~85℃ | ||||||
| Storage Temp. | -50℃~95℃ | ||||||
- Specifications-yt9wcu.pdf Download
