YSSN3VXMTXXXEPNNA
- Interface: SATA III
- Capacity: 240GB-960GB, 1.92TB-7.68TB
- NAND: 3D TLC
- Read: Up to 550 MB/s
- Write: Up to 535 MB/s
- Operating Temperature: 0℃～70℃ Enterprise-grade
- Additional Features:
- Wear Leveling
- Native Command Queuing (NCQ)
- TRIM/S.M.A.R.T/ECC
- Hardware Power Loss Protection
Technology
-

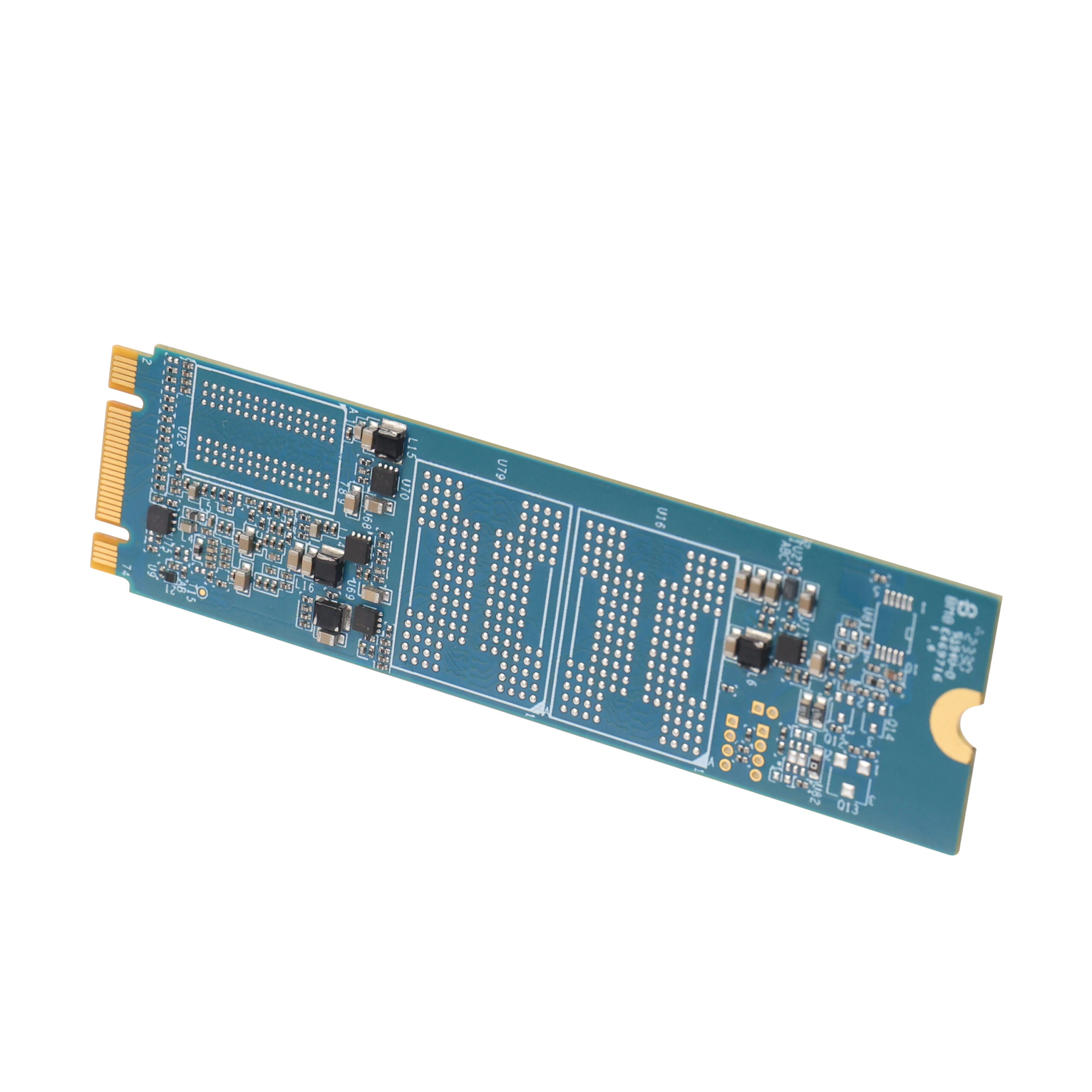

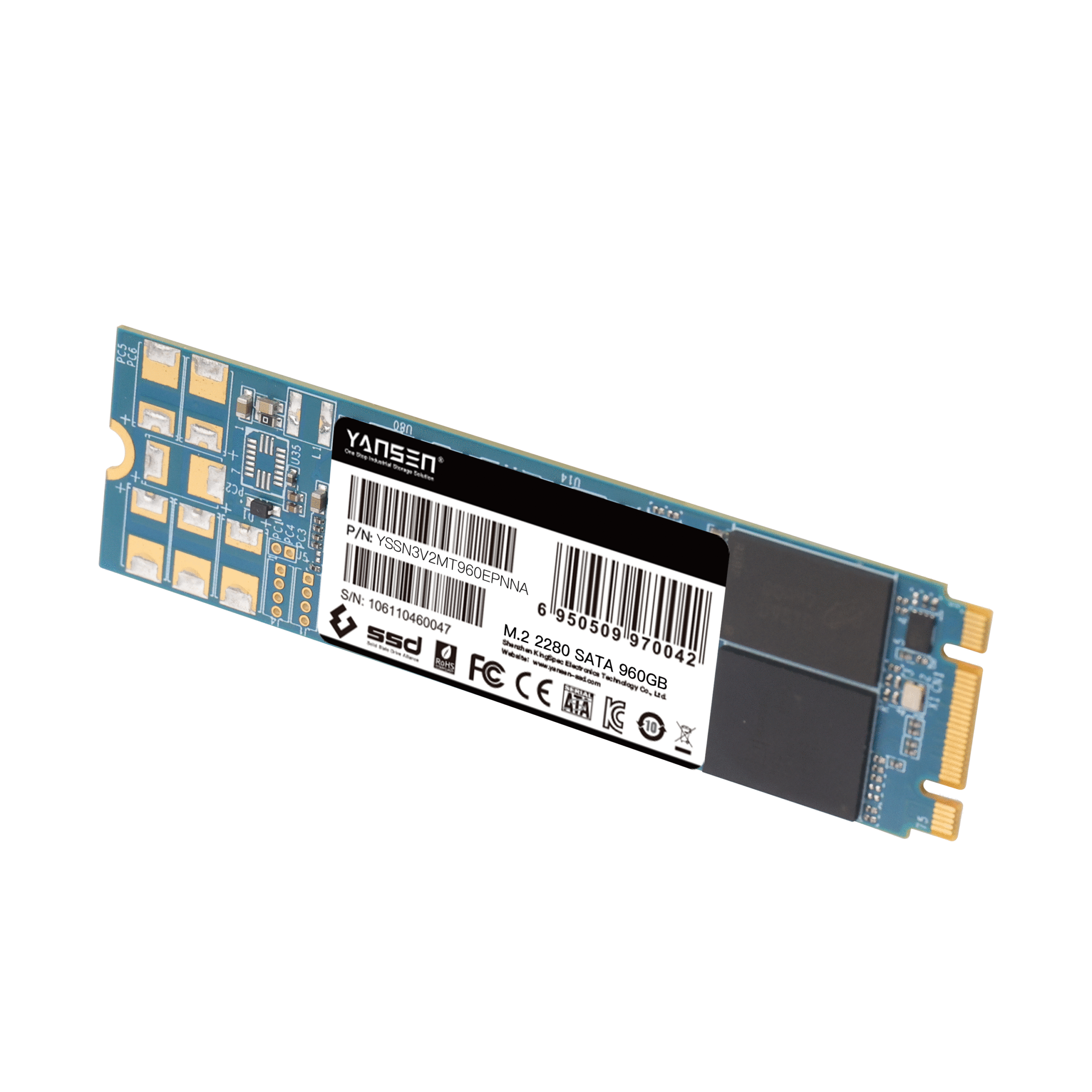

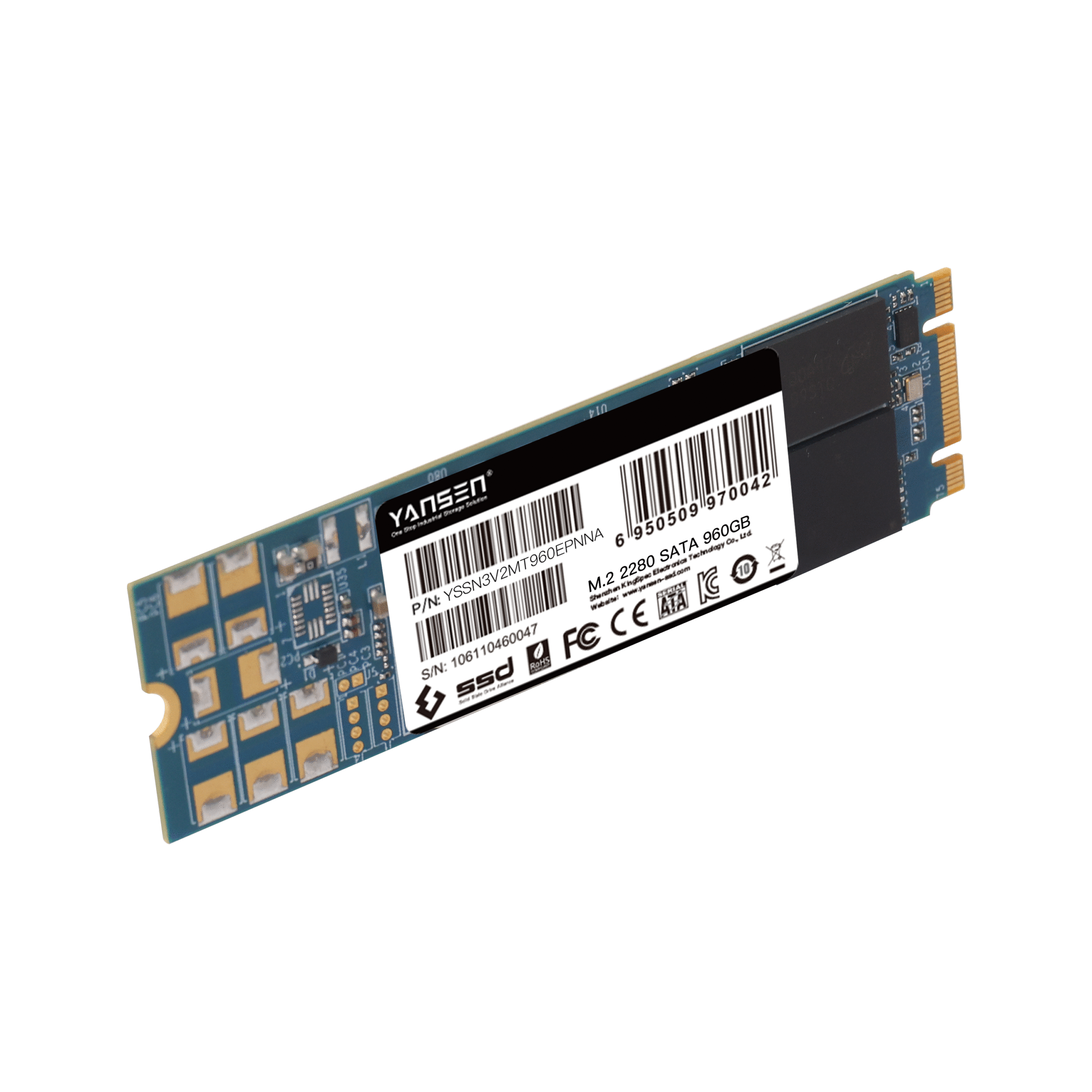

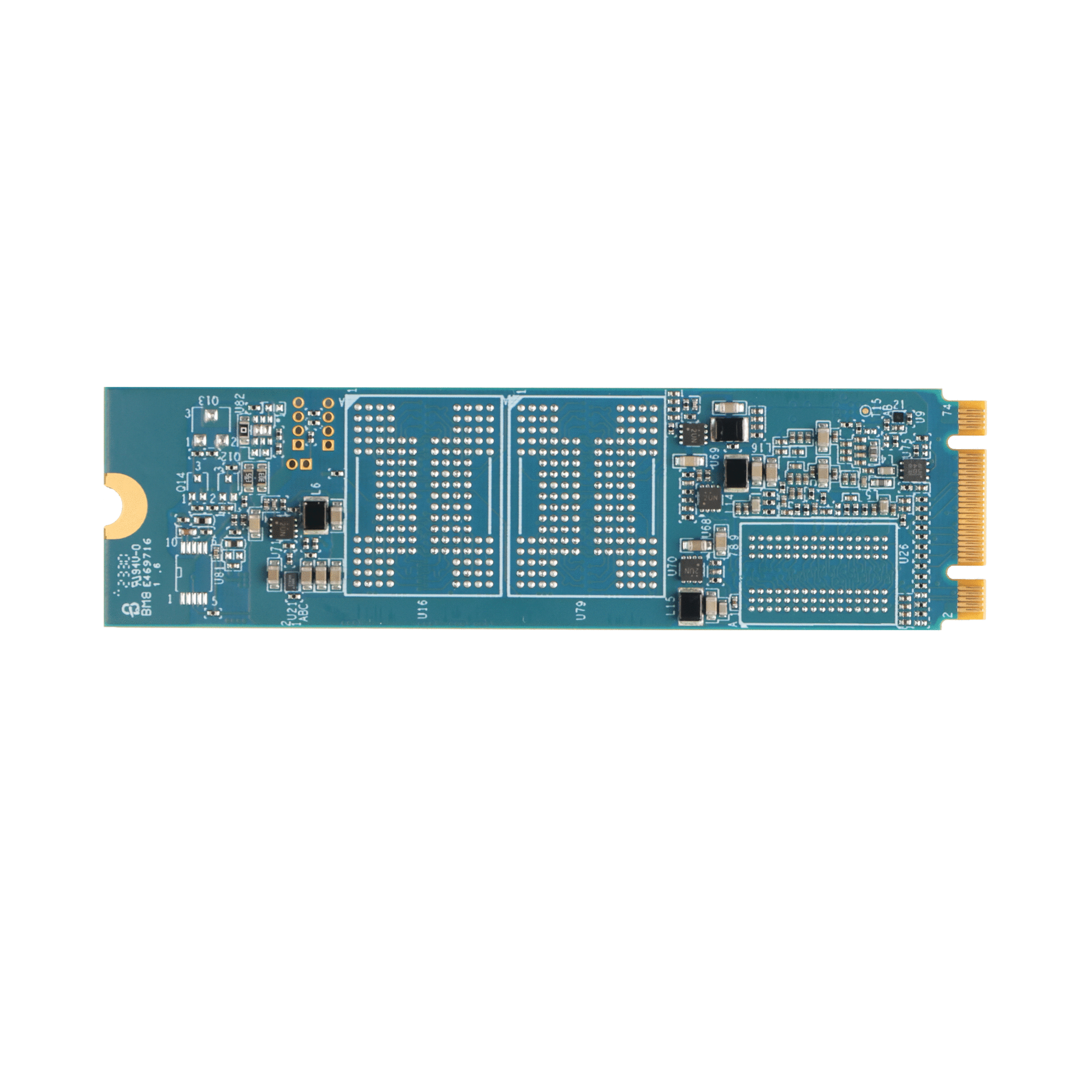

YSSN3VXMTXXXEPNNA is an M.2 SATA SSD based on enterprise-class SATA3 controller with 3D NAND flash memory and DDR3 DRAM. This technology is designed to optimize the limitations of low computing performance of traditional hard disk drives. All mechanical parts have been replaced with electronic components to prevent shock and vibration damages.The YANSENM.2 SATA SSD offers a capacity range from 240GB to 960GB and 1.92TB to 7.68TB, ensuring data storage for enterprise applications. Delivering fast read and write speeds of up to 550 MB/s and 535 MB/s, the YANSEN SATA III SSD provides the speed necessary for efficient data access and transfer.
Order Information
| Model | Flash type | Capacity | Sequential read and write | |
| read | write | |||
| YSSN3V2MT240EPNNA | 3D TLC | 240GB | 550MB/S | 290MB/S |
| YSSN3V2MT480EPNNA | 3D TLC | 480GB | 550MB/S | 520MB/S |
| YSSN3V2MT960EPNNA | 3D TLC | 960GB | 550MB/S | 535MB/S |
| YSSN3V1MT1T9EPNNA | 3D TLC | 1.92TB | 550MB/S | 535MB/S |
| YSSN3V1MT3T8EPNNA | 3D TLC | 3.84TB | 550MB/S | 535MB/S |
| YSSN3V1MT7T6EPNNA | 3D TLC | 7.68TB | 535MB/S | 535MB/S |
| Model | YSSN3VXMTXXXEPNNA | ||||||
| Dimensions | M.22280, L80.0mm*W22.0mm*H3.5mm Error±0.15mm | ||||||
| Interface | M.22280 B&M Key | ||||||
| Protocol | SATAⅢ(6Gb/s)-with backwards compatibility to SATAI(3Gb/s) | ||||||
| Supported Systems | Windows 7, Windows 8, Windows 10, Windows Server 2012 R2, RHEL, CentOS, Ubuntu, Linux |
||||||
| Capacity | 240GB | 480GB | 960GB | 1.92TB | 3.84TB | 7.68TB | |
| NAND Flash | 3D TLC | 3D TLC | 3D TLC | 3D TLC | 3D TLC | 3D TLC | |
| Sequential Read(MB/s) | 550 | 550 | 550 | 550 | 550 | 535 | |
| Sequential Write(MB/s) | 290 | 520 | 535 | 535 | 535 | 535 | |
| TBW | 250TB | 500TB | 1000TB | 2000TB | 4000TB | 8000TB | |
| 4K Random read(IOPS) | 85K | 95K | 98K | 98K | 98K | 75K | |
| 4K Random write(IOPS) | 10K | 18K | 20K | 22K | 24K | 10K | |
| DWPD | 0.6 DWPD @5 Years | ||||||
| Input voltage | DC 3.3V+/-5% | ||||||
| Power consumption ldle | <0.5W(MAX) | ||||||
| Power consumption Active | <4.0W(MAX) | ||||||
| Data retention | 10 years below 25 degree | ||||||
| MTBF | 2 million hours | ||||||
| ECC | 4K Low Density Parity Check(LDPC)ECC | ||||||
| Features | Power management/TRIM/S.M.A.R.T./NCQWear-leveling | ||||||
| Operating Temp. | 0℃~70℃ Enterprise-grade | ||||||
| Storage Temp. | -40℃~85℃ | ||||||
| Humidity | 5-95% | ||||||
- Specifications Download
