YSNU2V3MTXXXIPNNX
- Interface: U.2
- Capacity: 960GB, 1.92TB-7.68TB
- NAND: 3D TLC
- Read: Up to 3500 MB/s
- Write: Up to 3000 MB/s
- Operating Temperature: -40℃～85℃
- Additional Features:
- 4K LDPC ECC
- End-To-End Data Protection
- Hardware Power Loss Protection
- S.M.A.R.T monitoring
- Thermal Protection
- Overheating throttling
Technology
-

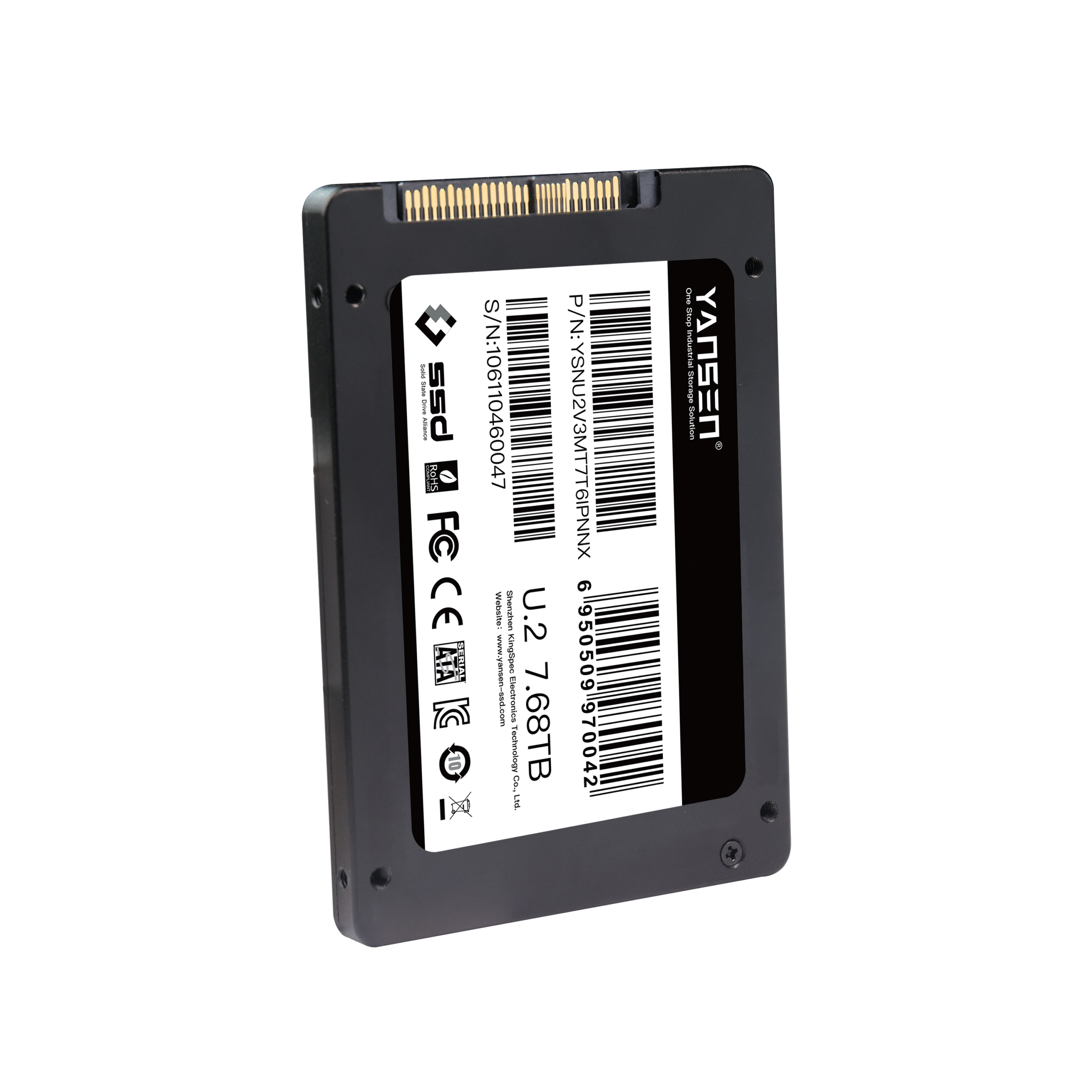

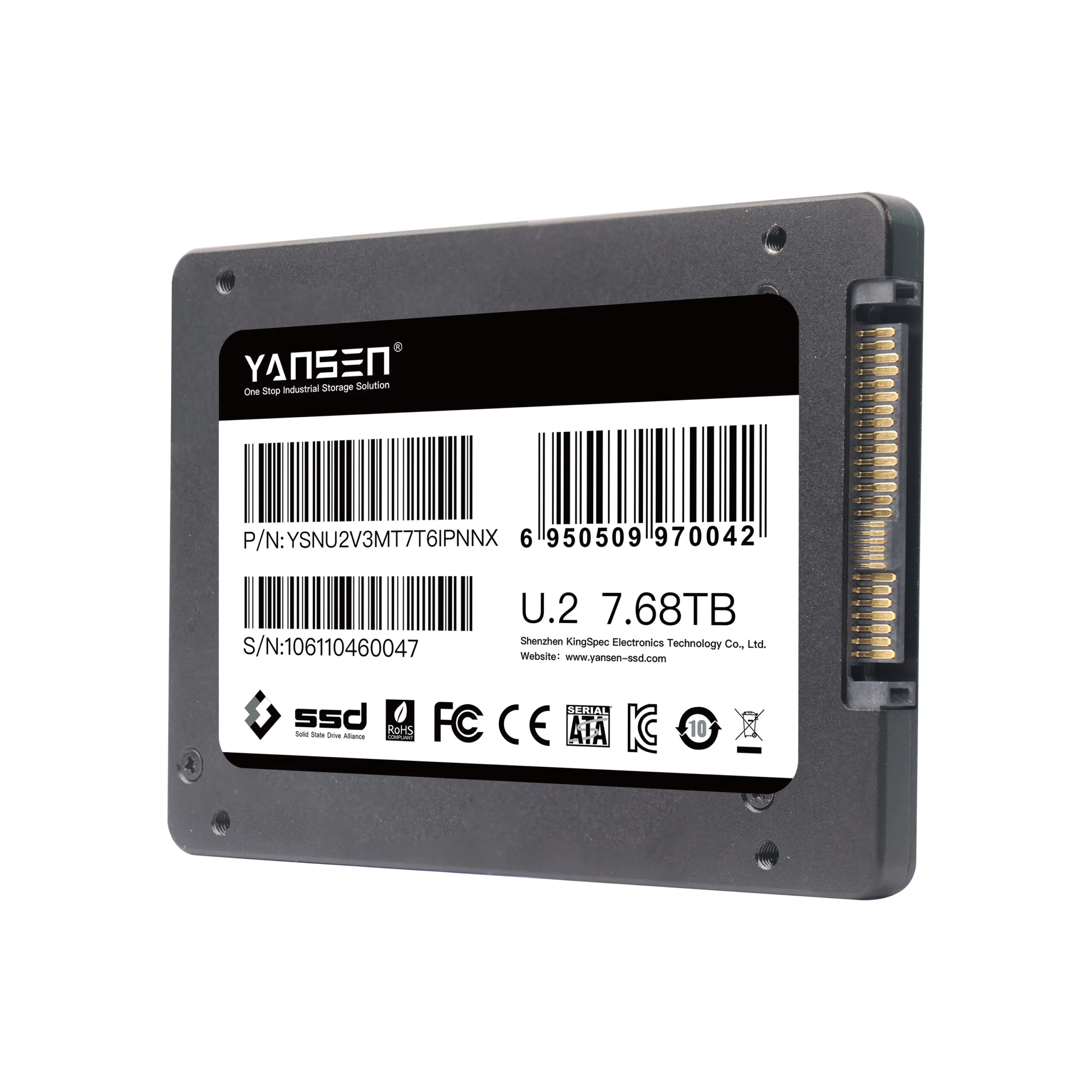

YSNU2V3MTXXXIPNNX is a U.2 NVMe SSD paired with 3D TLC NAND flash array and DDR4 cache. It adheres to the PCIe Gen 4 x 4 interface standard, supporting the NVMe 1.4 protocol. Additionally, it incorporates next generation LDPC technology secures NAND endurance, significantly enhancing the reliability and stability of the solid-state drive. YANSEN’s U.2 SSD supports temperature intelligent management, and advanced features like multi-level intelligent power management technology. These capabilities contribute to its consistent read/write performance and stable random-state performance, making it an ideal choice for enterprise-level applications such as data centers, cloud services, and the Internet of Things (IoT).
Order Information
| Model | Flash Type | Capacity | Sequential Read and Write | |
| Read | Write | |||
| YSNU2V3MT960IPNNA | 3D TLC | 960GB | 3200MB/s | 1800MB/s |
| YSNU2V3MT1T9IPNNA | 3D TLC | 1.92TB | 3200MB/s | 3000MB/s |
| YSNU2V3MT3T8IPNNA | 3D TLC | 3.84TB | 3500MB/s | 3000MB/s |
| YSNU2V3MT7T6IPNNA | 3D TLC | 7.68TB | 3500MB/s | 3000MB/s |
| Model | YSNU2V3MTXXXIPNNX | ||||
| Dimensions | L100.0mm*W69.85mm*H7.0mm Error±0.15mm | ||||
| Interface | U.2 | ||||
| Protocol | PCle Gen4x4Lane,NVME 1.4 | ||||
| Supported Systems | Windows 7,Windows 8,Windows 10,Windows Server 2012 R2,RHEL, CentOS,Ubuntu,Linux |
||||
| Capacity | 960TB | 1.92TB | 3.84TB | 7.68TB | |
| NAND Flash | 3D TLC | 3D TLC | 3D TLC | 3D TLC | |
| Sequential Read(MB/s) | 3200 | 3200 | 3500 | 3500 | |
| Sequential Write (MB/s) | 1800 | 3000 | 3000 | 3000 | |
| TBW | 1000TB | 2000TB | 4000TB | 8000TB | |
| 4K Random read(IOPS) | 240K | 400K | 400K | 400K | |
| 4K Random write(IOPS) | 30K | 48K | 50K | 50K | |
| Input voltage | DC 12V+/-10% | ||||
| Power consumption ldle | <1W | ||||
| Power consumption Active | <12W | ||||
| Data retention | 10 years below 25 degree | ||||
| MTBF | 2 mllion hours | ||||
| ECC | 4K LDPC ECC | ||||
| Features | Power management/TRIM/S.M.A.R.T./Wear-leveling | ||||
| Operating Temp. | -40℃~85℃ | ||||
| Storage Temp. | -55℃~95℃ | ||||
| Humidity | 5-95% | ||||
- Specifications Download
