YSNN1M3YTXXXINNNN
- Interface: PCIe Gen3 x2
- Capacity: 128-1TB
- NAND: 3D TLC
- Read: Up to 1200 MB/s
- Write: Up to 1100 MB/s
- Operating Temperature: -20℃~75℃, -40℃~85℃
- Additional Features:
- TLC Direct Writing: Yes
Technology

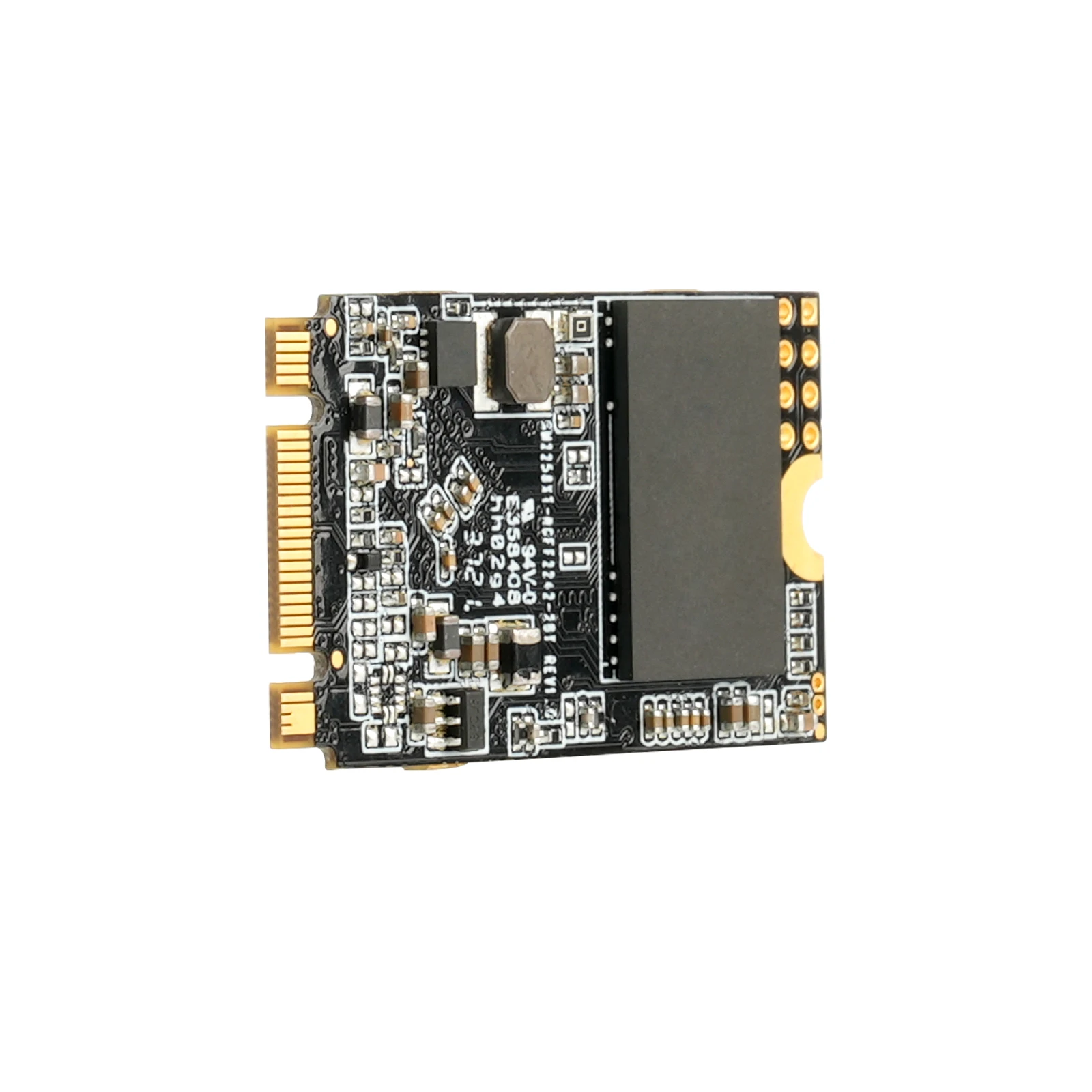

- Introducing the Yansen YSNN1M3YTXXXINNNN 2242BM has a length of 42.0mm and M.2 B&M Key form factor, it is a high-quality M.2 NVMe SSD designed for reliable and efficient storage. By utilizing advanced 3D TLC technology and offering a capacity range of 128-1TB, this SSD delivers fast read and write speeds of up to 1200/1100 MB/s. It features a PCIe Gen3 (8Gb/s) x2 interface and supports NVMe 1.4 for optimal performance.
- This SSD is perfect for a wide range of applications. It can operate in temperatures ranging from -20℃~75℃ and -40℃~85℃, ensuring reliable operation in various environments.
Order Information
| Model | Flash type | Capacity | Sequential read and write | |
| read | write | |||
| YSNN1M3YT128INNNN | 3D TLC | 128GB | 900~950MB/S | 600~800MB/S |
| YSNN1M3YT256INNNN | 3D TLC | 256GB | 950~1100MB/S | 800~950MB/S |
| YSNN1M3YT512INNNN | 3D TLC | 512GB | 1000~1100MB/S | 900~1000MB/S |
| YSNN1M3YT01TINNNN | 3D TLC | 1TB | 1000~1200MB/S | 900~1100MB/S |
| Model | YSNN1M3YTXXXINNNN | |||
| Dimensions | M.2 2242 L42.0mm * W22.0mm * H3.2mm Error±0.1mm | |||
| Form factor | M.2 B&M Key | |||
| Interface | PICe Gen3 x 2Lane,NVME 1.4 | |||
| Capacity | 128GB | 256GB | 512GB | 1TB |
| NAND Flash | 3D TLC | 3D TLC | 3D TLC | 3D TLC |
| Sequential Read (MB/s) | 900~950 | 950~1100 | 1000~1100 | 1000~1200 |
| Sequential Write (MB/s) | 600~800 | 800~950 | 900~1000 | 900~1100 |
| TBW | 90TB | 185TB | 375TB | 750TB |
| Input voltage | DC 3.3V±5% | |||
| Power consumption Idle | 0.43W(Max) | |||
| Power consumption Active | 2.0W(Max) | |||
| Data retention | 10years below 25 degree | |||
| MTBF | 2 million hours | |||
| ECC | LDPC Error Correction of Hardware | |||
| Features | System automatic bad block management | |||
| Operating Temp. | -20℃~75℃, -40℃~85℃ | |||
| Storage Temp. | -55℃~105℃ | |||
| Humidity | 5-95% | |||
| Vibration | 80Hz~2000Hz/20G | |||
| Shock | 1500G/0.5ms | |||
No Downloadable Files
