YSNU2G3YEXXXEPXXX
- Interface: U.2
- Capacity: 1.6TB-6.4TB, 1.92TB-7.68TB
- NAND: 3D eTLC
- Read: Up to 7400 MB/s
- Write: Up to 6100 MB/s
- Operating Temperature: 0℃～70℃ Enterprise-grade
- Additional Features:
- 4K LDPC ECC
- Hardware Power Loss Protection
Technology
-

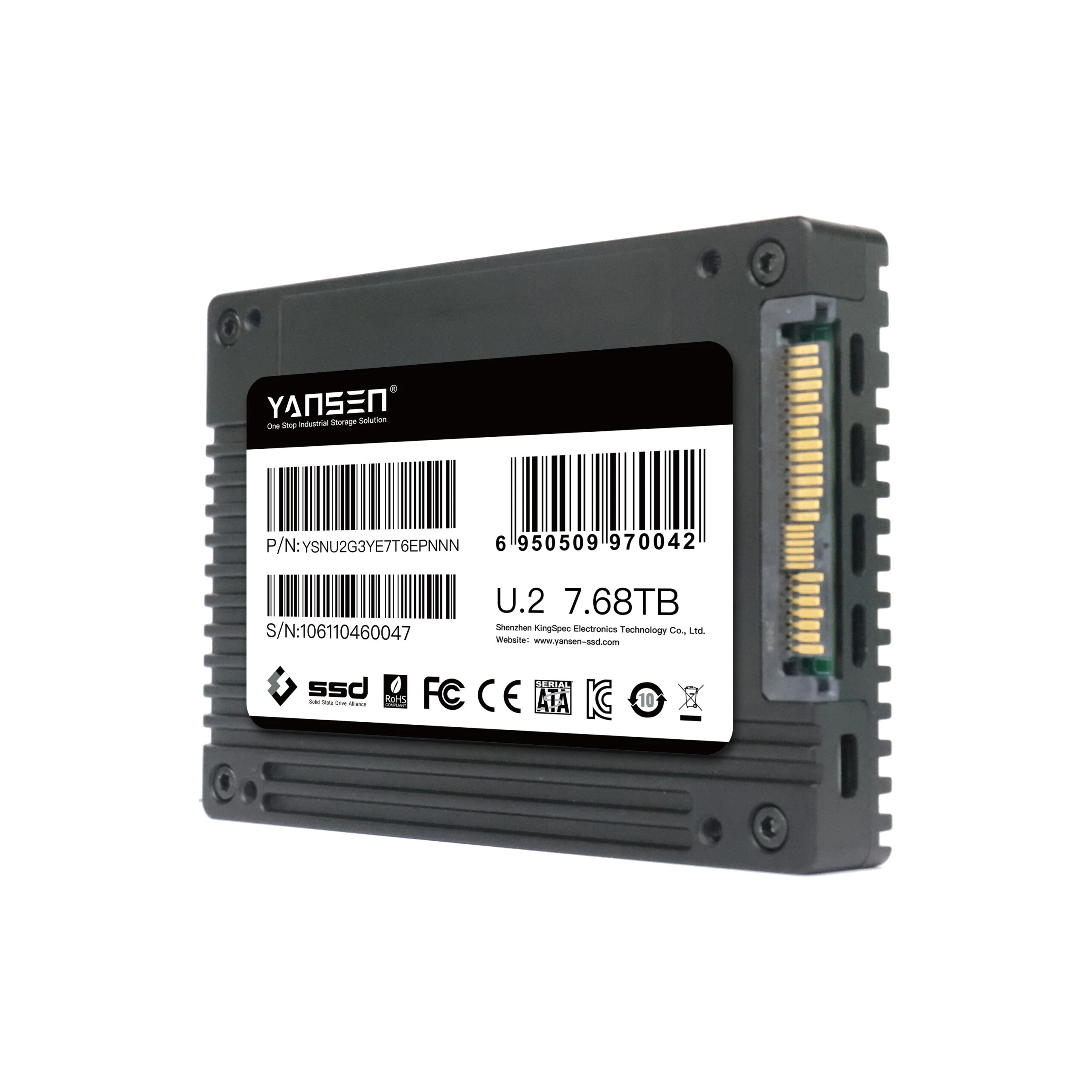

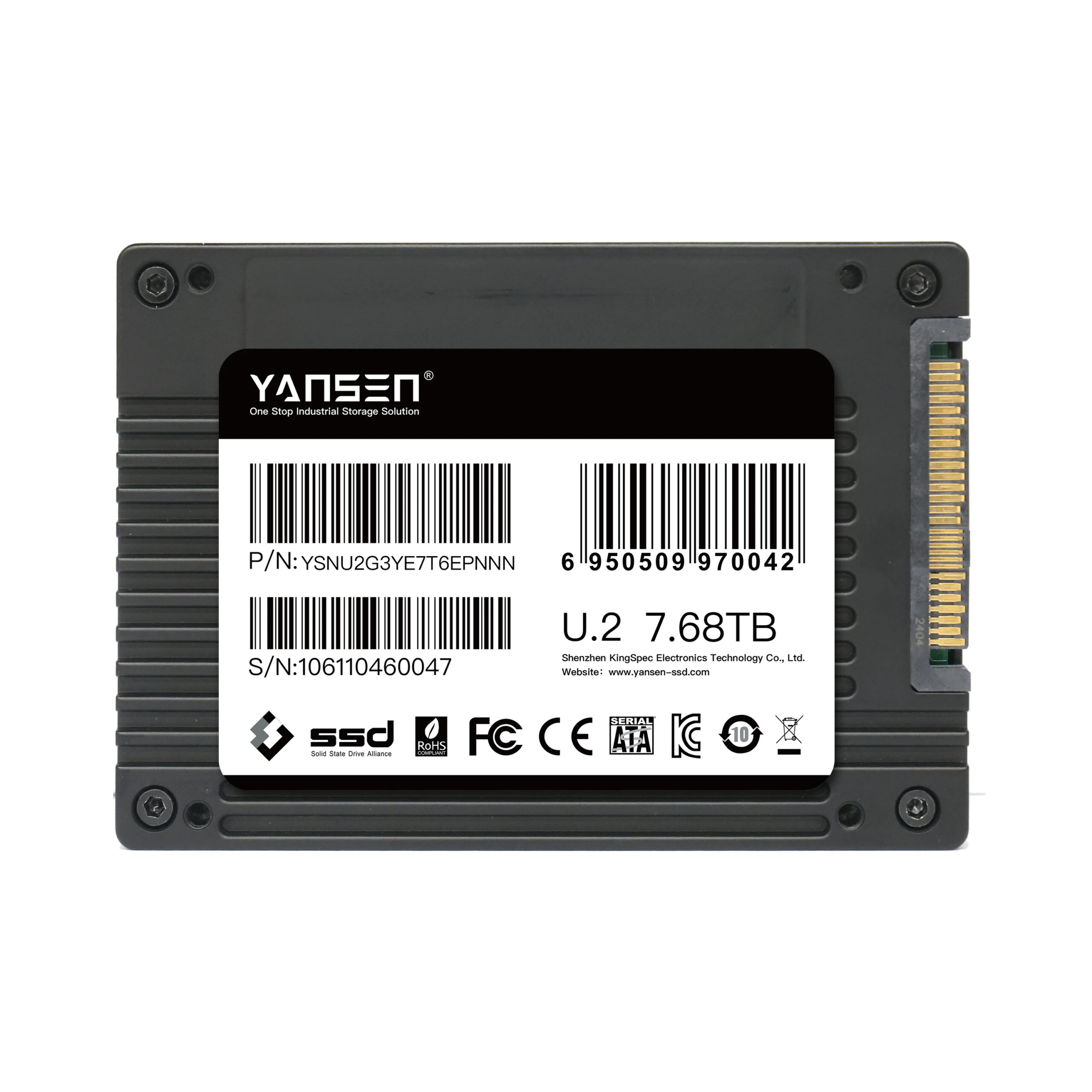

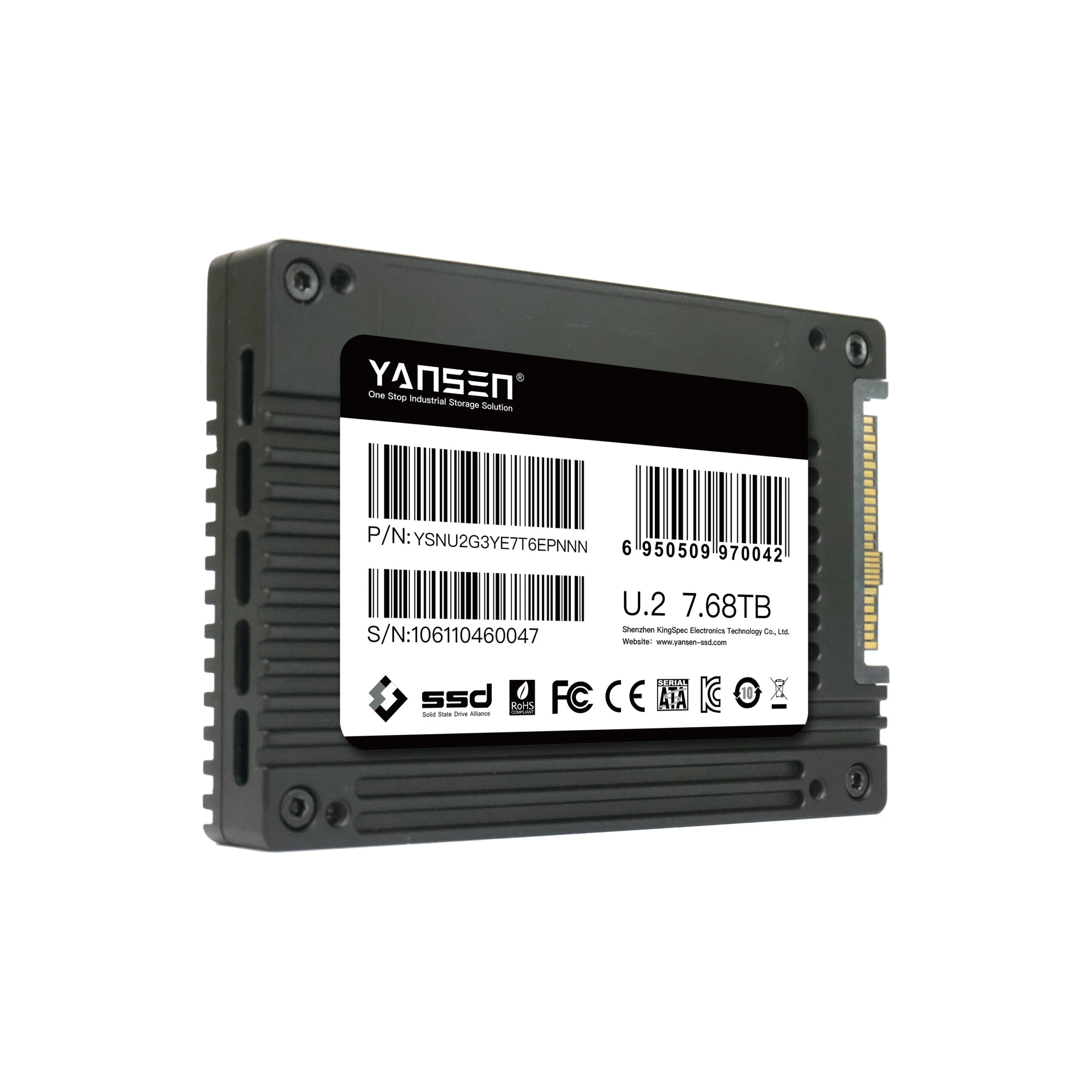

Introducing the YANSEN YSNU2G3YEXXXEPXXX U.2 NVMe SSD, an advanced storage solution designed for reliable and efficient performance in industrial environments. Featuring a U.2 interface and advanced 3D eTLC NAND technology, this SSD offers a capacity range of 1.6TB to 6.4TB and 1.92TB to 7.68TB, ensuring data storage for a variety of applications.
Order Information
| Model | Flash Type | Capacity | Sequential Read and Write | |
| Read | Write | |||
| YSNU2G3YE1T6EPNNN | 3D eTLC | 1.6TB | 7400MB/s | 2700MB/s |
| YSNU2G3YE1T9EPNNN | 3D eTLC | 1.92TB | 7400MB/s | 2700MB/s |
| YSNU2G3YE3T2EPNNN | 3D eTLC | 3.2TB | 7400MB/s | 5300MB/s |
| YSNU2G3YE3T8EPNNN | 3D eTLC | 3.84TB | 7400MB/s | 5300MB/s |
| YSNU2G3YE6T4EPNNN | 3D eTLC | 6.4TB | 7400MB/s | 6100MB/s |
| YSNU2G3YE7T6EPNNN | 3D eTLC | 7.68TB | 7400MB/s | 6100MB/s |
| Model | YSNU2G3YEXXXEPXXX | ||||||
| Dimensions | L100.45mm*W69.85mm*H15.0mm Error±0.15mm | ||||||
| Interface | U.2 | ||||||
| Protoco | PCle Gen4 x4 Lane, NVME 1.4 | ||||||
| Supported Systems | Windows 7,Windows 8,Windows 10,Windows Server 2012 R2,RHEL, CentOS,Ubuntu,Linux |
||||||
| Capacity | 1.6TB | 1.92TB | 3.2TB | 3.84TB | 6.4TB | 7.68TB | |
| NAND Flash | 3D eTLC | 3D eTLC | 3D eTLC | 3D eTLC | 3D eTLC | 3D eTLC | |
| Sequential Read(MB/s) | 7400 | 7400 | 7400 | 7400 | 7400 | 7400 | |
| Sequential Write (MB/s) | 2700 | 2700 | 5300 | 5300 | 6100 | 6100 | |
| 4K Random read(IOPS) | 800K | 800K | 1000K | 1000K | 1200K | 1200K | |
| 4K Random write(IOPS) | 200K | 120K | 400K | 200K | 420K | 230K | |
| DWPD | 3 | 3 | 1 | 3 | 1 | ||
| Inputvoltage | DC12V+/-10% | ||||||
| Power consumption Idle | 3W | 3W | 3W | 3W | 3W | 3W | |
| Power consumption Active | 8W | 8W | 13W | 13W | 14W | 14W | |
| Data retention | 10 years below 25 degree | ||||||
| MTBF | 2 million hours | ||||||
| ECC | 4K LDPC ECC | ||||||
| Features | Power management/TRIM/S.M.A.R.T./Wear-leveling | ||||||
| Operating Temp. | 0℃~70℃ Enterprise-grade | ||||||
| Storage Temp. | -40℃~85℃ | ||||||
| Humidity | 5-95% | ||||||
- Specifications Download
