YSNBSM7MTXXXXXXXX
- Interface: BGA SSD
- Capacity: 128GB-1TB
- NAND: 3D TLC
- Read: Up to 5000 MB/s
- Write: Up to 1700 MB/s
- Operating Temperature: 0℃~70℃, -40℃~85℃
- Additional Features:
- ECC Hardware LDPC
Technology
-

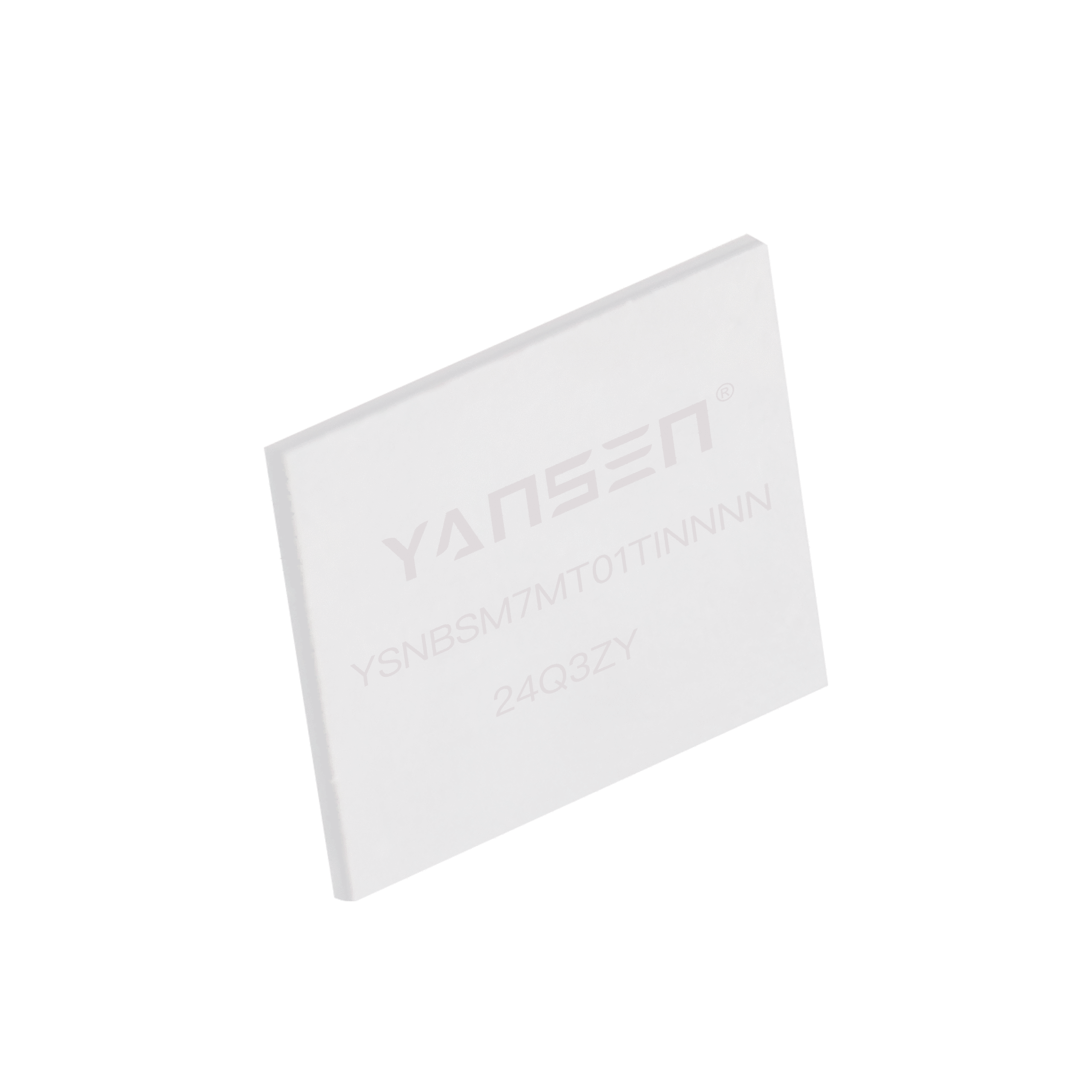

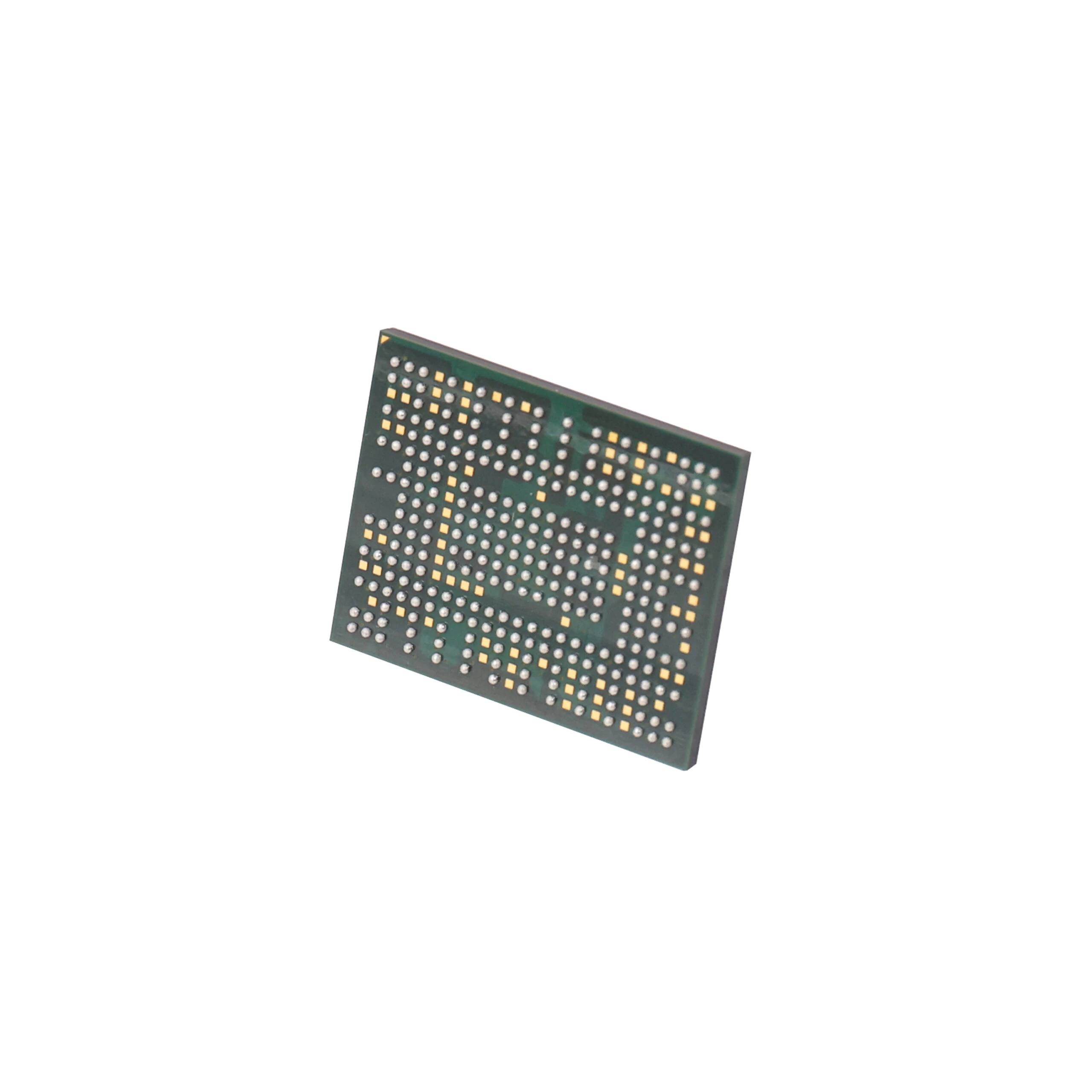

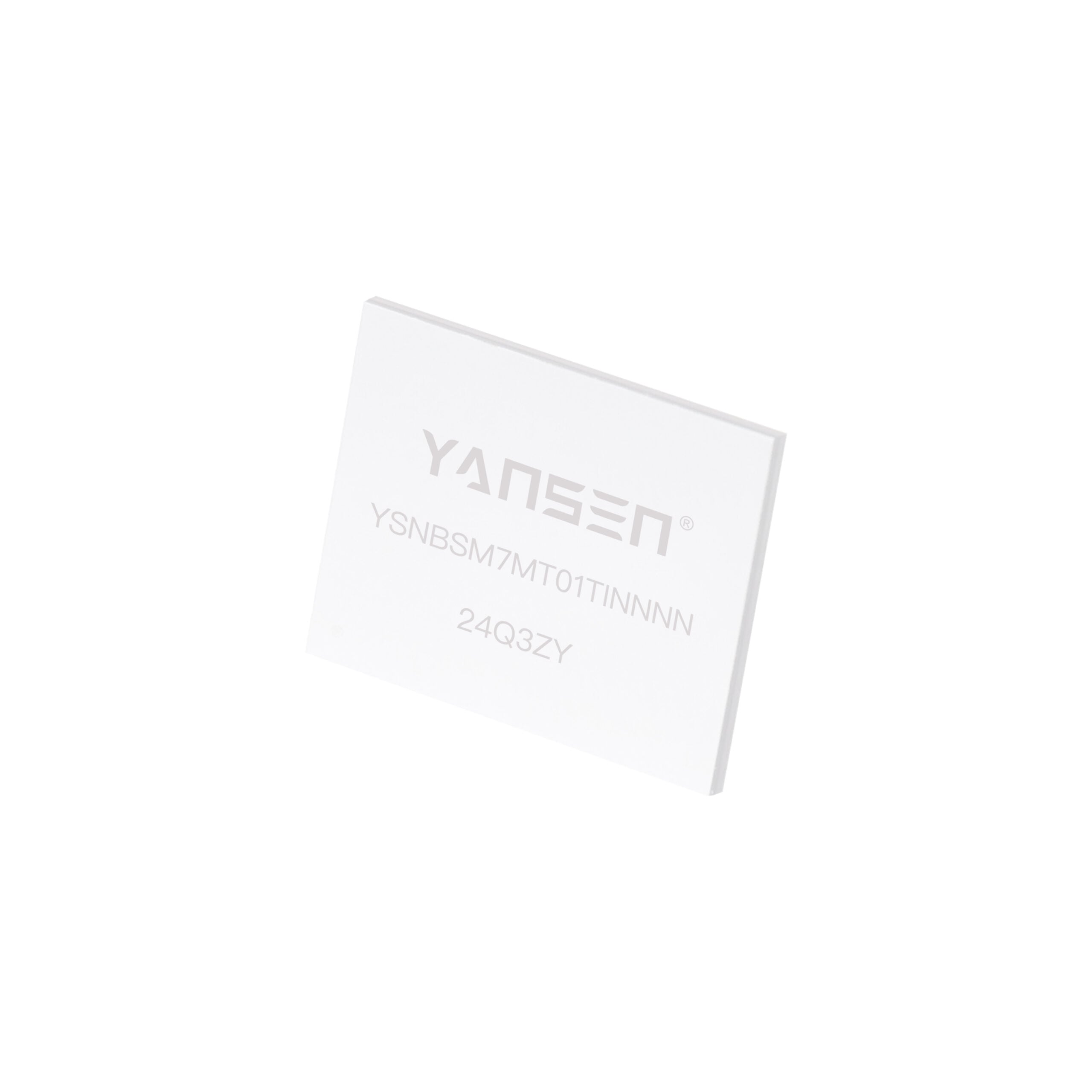

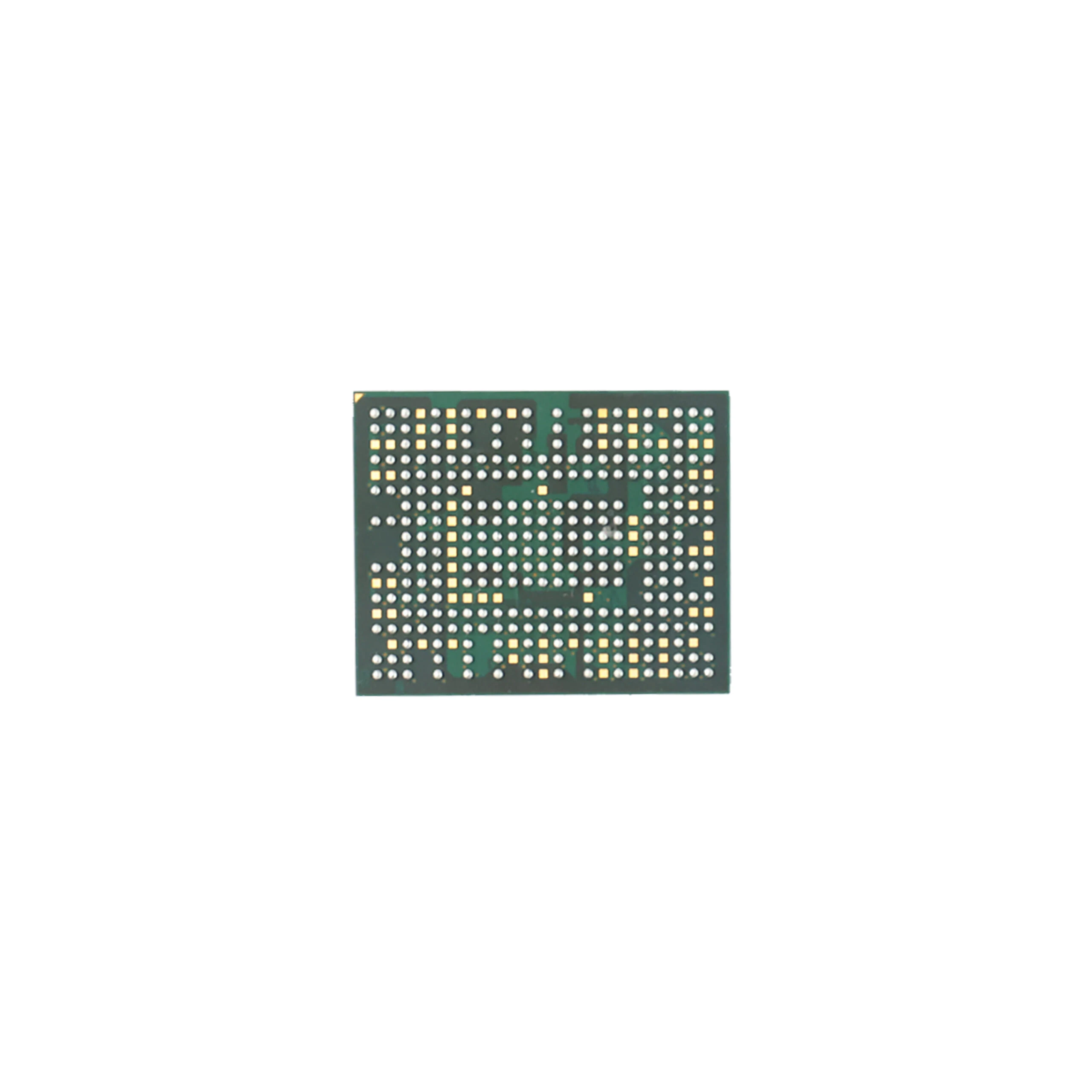

Introducing the YANSEN YSNBSM7MTXXXXXXXX BGA SSD, a high-quality storage solution designed for reliable and efficient performance. By utilizing advanced 3D TLC technology and offering a capacity range of 128GB to 1TB, this BGA SSD delivers fast read and write speeds of up to 5000 MB/s and 1700 MB/s. This SSD is perfect for a wide range of industrial applications. It can operate in temperatures ranging from 0℃ to 70℃ and -40℃ to 85℃, ensuring reliable operation in various environments.
Order Information
| Model | Flash Type | Capacity | Sequential Read and Write | |
| Read | Write | |||
| YSNBSM7MT128CNNNN | 3D TLC | 128GB | 800MB/s | 200MB/s |
| YSNBSM7MT256CNNNN | 3D TLC | 256GB | 1600MB/s | 400MB/s |
| YSNBSM7MT512CNNNN | 3D TLC | 512GB | 3500MB/s | 800MB/s |
| YSNBSM7MT01TCNNNN | 3D TLC | 1TB | 5000MB/s | 1700MB/s |
| YSNBSM7MT128INNNN | 3D TLC | 128GB | 800MB/s | 200MB/s |
| YSNBSM7MT256INNNN | 3D TLC | 256GB | 1600MB/s | 400MB/s |
| YSNBSM7MT512INNNN | 3D TLC | 512GB | 3500MB/s | 800MB/s |
| YSNBSM7MT01TINNNN | 3D TLC | 1TB | 5000MB/s | 1700MB/s |
| Model | YSNN1M3YTXXXINNNN | |||
| Dimensions | M.2 2242 L42.0mm * W22.0mm * H3.2mm Error±0.1mm | |||
| Form factor | M.2 B&M Key | |||
| Interface | PICe Gen3 x 2Lane,NVME 1.4 | |||
| Capacity | 128GB | 256GB | 512GB | 1TB |
| NAND Flash | 3D TLC | 3D TLC | 3D TLC | 3D TLC |
| Sequential Read (MB/s) | 900~950 | 950~1100 | 1000~1100 | 1000~1200 |
| Sequential Write (MB/s) | 600~800 | 800~950 | 900~1000 | 900~1100 |
| TBW | 90TB | 185TB | 375TB | 750TB |
| Input voltage | DC 3.3V±5% | |||
| Power consumption Idle | 0.43W(Max) | |||
| Power consumption Active | 2.0W(Max) | |||
| Data retention | 10years below 25 degree | |||
| MTBF | 2 million hours | |||
| ECC | LDPC Error Correction of Hardware | |||
| Features | System automatic bad block management | |||
| Operating Temp. | -20℃~75℃, -40℃~85℃ | |||
| Storage Temp. | -55℃~105℃ | |||
| Humidity | 5-95% | |||
| Vibration | 80Hz~2000Hz/20G | |||
| Shock | 1500G/0.5ms | |||
| Model | YSNBSM7MTX | ||||
| Dimensions | 16.0mm*20.0mm*1.2mm | ||||
| Interface | BGA SSD | ||||
| Protoco | PCle Gen 4×4 Lane, NVME 1.4 | ||||
| Supported Systems | Windows 7/8.1/10, Windows Server 2012/2012 R2/2016, CentOS, FreeBSD, openSUSE, Red Hat, Ubuntu, VMware ESXi, Citrix, KVM |
||||
| Capacity | 128GB | 256GB | 512GB | 1TB | |
| NAND Flash | 3D TLC | 3D TLC | 3D TLC | 3D TLC | |
| Sequential Read(MB/s) | 800 | 1600 | 3500 | 5000 | |
| Sequential Write (MB/s) | 200 | 400 | 800 | 1700 | |
| 4K Random read(IOPS) | 30K | 50K | 100K | 200K | |
| 4K Random write(IOPS) | 5K | 8K | 10K | 10K | |
| Input voltage | 3.3V | ||||
| ldle mode power (average) | <1W | ||||
| Active power (average) | <3W | ||||
| Data retention | JESD218A-compliant | ||||
| MTBF | 2 million hours | ||||
| ECC | Hardware LDPC capable of correcting errors | ||||
| Features | Global static and dynamic wear leveling | ||||
| Operating Temp. | 0℃~70℃, -40℃~85℃ | ||||
| Storage Temp. | -50℃~95℃ | ||||
| Humidity | 5-95% | ||||
| Compliance | CE,ROHS,FCC | ||||
- Specifications Download
